MEYER K Thinker DI UHD AI Belt Color Sorters for Dry Fruits with Wormhole Detection — click outside to close
🔍 Click to zoom
Best Seller
Belt Sorter
MEYER K Thinker DI UHD AI Belt Color Sorters for Dry Fruits with Wormhole Detection
The MEYER K Series is a single-layer optical color sorter engineered for demanding food and agricultural processing where tiny 'small target' defects and contaminants must be removed with precision. Powered by UHD2.0 AI Deep Learning and ultra-high-definition imaging with industrial four-color CCD sensors, it identifies objects as small as 0.0025 mm² — scanning material at 50,000 frames per second.
Description
▾
The MEYER K Series is a single-layer optical color sorter engineered for demanding food and agricultural processing where tiny 'small target' defects and contaminants must be removed with precision. Powered by UHD2.0 AI Deep Learning and ultra-high-definition imaging with industrial four-color CCD sensors, it identifies objects as small as 0.0025 mm² — scanning material at 50,000 frames per second.
What materials is it suitable for?
▾
PET
PVC
Nuts
Seeds & grains
Beans & pulses
Fruits & vegetables
HDPE
Metal
→
INPUT
✓
ACCEPT
✕
REJECT
Technical Specifications
▾
| Name | Model | Power (kW) | Voltage (V) | Air Pressure (MPa) | Air Consumption (m³/min) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|

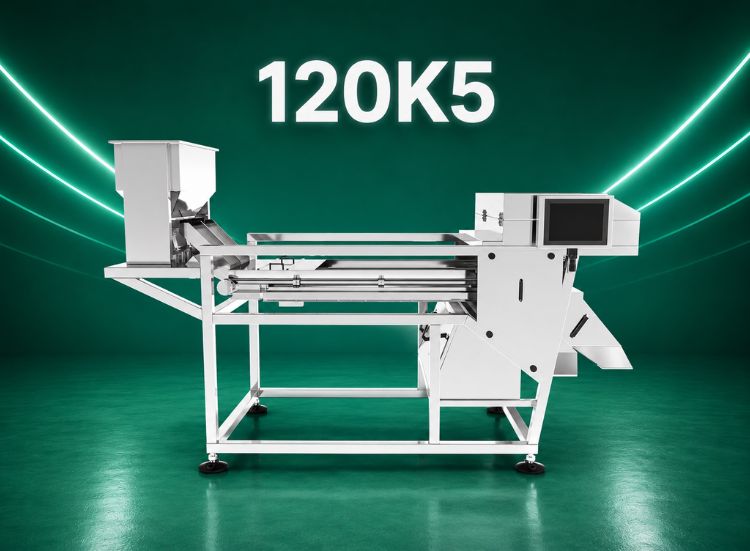

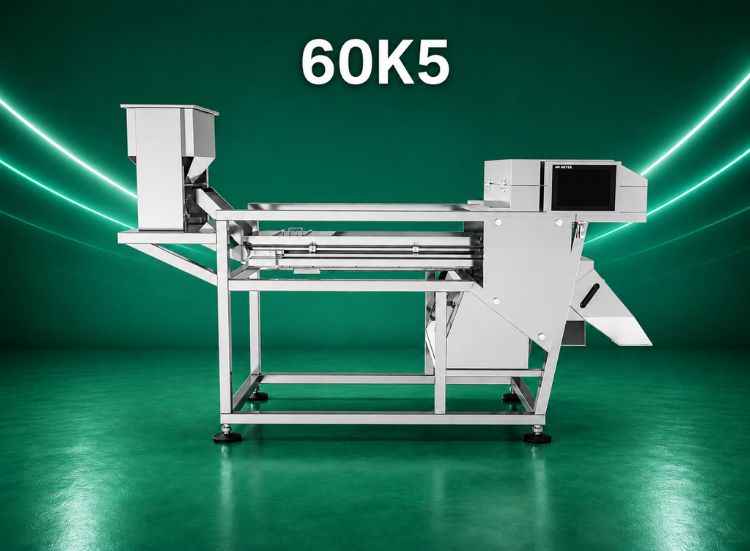

| K Thinker DI UHD AI | 6SXZ-60K5 | 1.6 | 180～240 50Hz | 0.6～0.8 | 1.5 | 3410*1200*1800 | 660 |
| 6SXZ-120K5 | 3.6 | 180～240 50Hz | 0.6～0.8 | 2.0 | 3405*1421*1789 | 700 | |

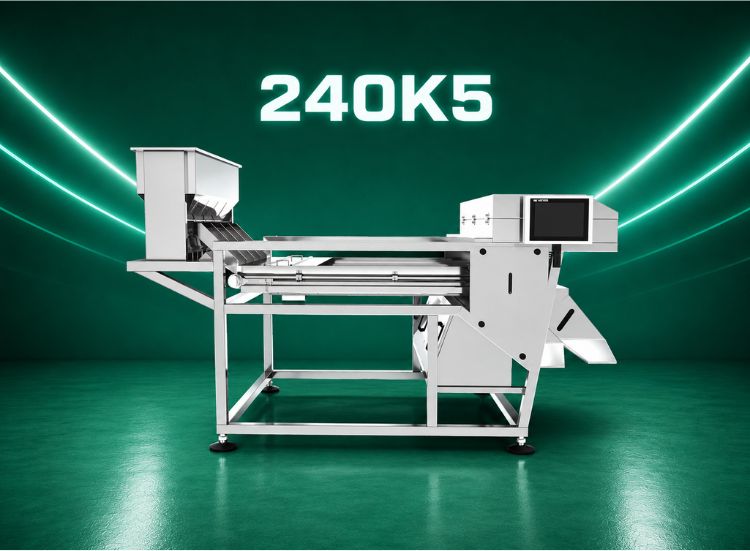

| 6SXZ-240K5 | 4.7 | 180～240 50Hz | 0.6～0.8 | 3.0 | 3405*2043*1789 | 990 |
Features
▾
👁️🗨️ AI Powered System
📷 Ultra high-speed HD Imaging System
⏏️ Maglev Ejectors®
👁️🗨️ Innovative Vision Systems
💡 Full Spectrum Lighting System
🎮 Remote control and service support
🔫 Sniper System
💻 Simplified Interface
AI Powered System
- MEYER thoroughly researches AI technology to provide the best sorting solutions. Our devices ar equipped with deep learning AI systems, based on the analysis and integration of data features such as color and shape.
- By comparing materials with an extensive library of models, Meyer ensures precise classification even of the smallest defects at the level od 1-2 pixels.
Pre and After-Sales Service
▾
PRE-SALE
Consulting solution service
Configuration suggestion
Layout suggestion
HELP DESK
Remote troubleshooting
Remote machine adjusting
Fault de-escalation
ON-SITE
Routine inspection
Commissioning
Troubleshooting
SPARE PARTS
Spare parts supply
Warranty service
Key parts maintenance
TRAINING
Local training
HQ training
Standard warranty
🌟 Pre-Sale Service — NICPL
Consultation on selecting the optimal sorter for your product
Support integrating with your existing production lines
Material testing available — attend and observe live at Kundli
🔧 After-Sale Service — NICPL
On-site service with quick response times across India
Warranty including free inspections and maintenance
24×7 support — call +91 70115 54903 anytime
Frequently Asked Questions
▾
What is the MEYER K Thinker DI UHD AI Belt Color Sorter used for?
The MEYER K Thinker is designed for sorting dry fruits and food products where small internal and external defects must be detected accurately. It specializes in identifying wormholes, discoloration, mold, insect damage, damaged pieces, and foreign materials in commodities like raisins, dried figs, dates, apricots, and other dry fruits.
How does the Wormhole Detection feature work?
The machine uses UHD2.0 AI Deep Learning combined with Ultra-HD cameras and color + shape analysis to detect wormholes that are invisible to the human eye. The system analyzes both the surface texture and shape of each particle to identify worm-damaged pieces with high precision and eject them without damaging the good product.
What is the Maglev Ejector 3.0 and why does it matter?
Maglev Ejector 3.0 is an advanced magnetic levitation-based ejection system that provides ultra-fast and highly precise rejection of defective particles. It ensures minimum product loss during rejection — meaning good product is not accidentally ejected along with bad — resulting in better efficiency and higher yield.
What defects can the K Thinker detect and remove?
The machine can detect and remove wormholes, discoloration, surface mold, insect damage, damaged or broken pieces, shape irregularities (long/round, long/short, large/small), and unwanted foreign materials — all in a single pass.
Does this machine support shape grading?
Yes. The K Thinker supports shape grading including long/round, long/short, and large/small classification, making it suitable for processors who need to sort dry fruits by both quality and size in one operation.
What makes the sorting chamber design special?
The machine features a highly sealed sorting chamber with soft landing protection. The sealed design prevents dust and contamination from entering, while the soft landing system gently receives sorted product to minimize breakage — critical for fragile dry fruits like raisins and dried berries.
What is the Sniper System in the MEYER K Series?
The Sniper System uses 3D reconstruction combined with the high-speed HD imaging system to precisely locate the center of contamination within each particle. This targeted positioning enables exact, clean rejection of defective units — reducing product loss and improving output purity compared to conventional rejection methods.
Is the MEYER K Series easy to operate and maintain?
Yes. The K Series features a simplified, intuitive control interface designed for operators at any skill level. The highly sealed sorting chamber (over 99% airtight) protects internal components from dust, water, and oil, reducing wear and maintenance needs. Remote service via PC or mobile allows MEYER technicians to perform diagnostics, startup, backups, and adjustments without on-site visit
What pre-sale and after-sale services does MEYER provide with the K Series?
Pre-sale services include consultation on machine selection, integration support for existing production lines, layout design assistance, and material testing at the NICPL https://nicplmeyer.com/support/trial-centre/ Test Center. After-sale services include on-site service with fast response times, free inspections and maintenance under warranty, remote troubleshooting and diagnostics, spare parts supply, operator training, and long-term service level agreements (SLA).
Customer Reviews (5)
▾
Nadia Fernandes
Goa Spice & Grain Processors
✓ Verified Buyer
★★★☆☆
The sorting quality for nuts and pulses is good overall and the UHD camera system performs well. However, the installation manual could be more detailed and our team needed extra support during setup. Response times from the service team could be faster. The machine delivers solid results once properly configured, but the onboarding process needs improvement.
24 May 2026
Bimal Kumar Joshi Company
Joshi Agro Processing Works
✓ Verified Buyer
★★★★☆
We use the 120K5 for mustard seeds and green gram sorting. The shape grading feature is very useful for separating by size in addition to removing defects. The machine is well-built and the interface is easy to learn. We gave 4 stars as the initial AI calibration for our specific grain variety took about two weeks, but after that the accuracy has been excellent.
11 May 2026
Venkatesh Reddy Company
Deccan Food Exports Pvt. Ltd.
✓ Verified Buyer
★★★★★
The sealed sorting chamber and soft landing protection were the deciding factors for us — our cashew kernels are very fragile and breakage was a big problem with our old machine. With the K Series, breakage is almost zero and the chamber stays clean without frequent washing. Very happy with both the machine and the after-sales support.
25 Apr 2026
CONTACT US
Are you interested in this product?
Need Help Choosing the Right Sorter?
Our experts will recommend the best Meyer model for your specific crop and production capacity
