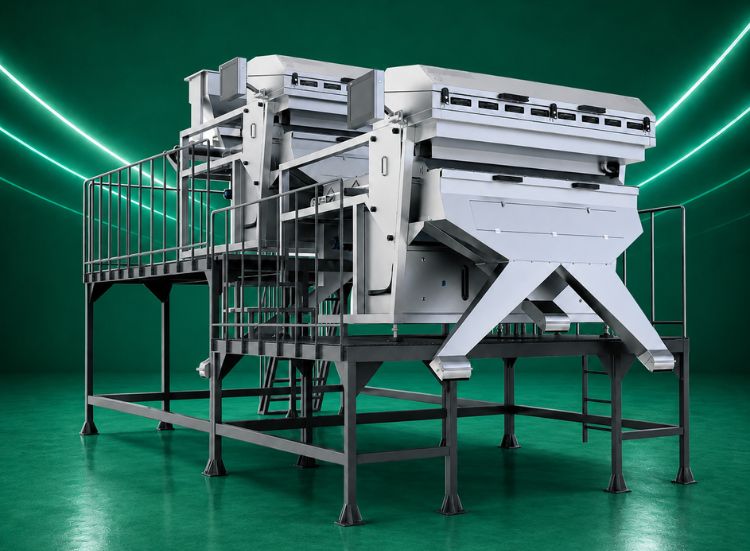

MEYER KFS Thinker UHD AI QUAD
The MEYER KFS Thinker UHD AI QUAD Belt Color Sorter for Cashew Hole uses deep AI + multispectral detection to identify micro color differences, small disease spots, wrinkles, and harmful impurities with high accuracy. Its 360° four-vision system captures defects from multiple angles, while the soft landing anti-crushing design helps reduce material breakage and protect product value. The machine also supports one-key adjustment after raw material changes, automatically matching the best sorting parameters for different grades and requirements. With waterproof, dust-proof, and oil-resistant sorting areas, plus intelligent maintenance alerts, it ensures stable performance, lower downtime, and efficient long-term operation.
Description
▾
The MEYER KFS Thinker UHD AI QUAD Belt Color Sorter for Cashew Hole uses deep AI + multispectral detection to identify micro color differences, small disease spots, wrinkles, and harmful impurities with high accuracy. Its 360° four-vision system captures defects from multiple angles, while the soft landing anti-crushing design helps reduce material breakage and protect product value. The machine also supports one-key adjustment after raw material changes, automatically matching the best sorting parameters for different grades and requirements. With waterproof, dust-proof, and oil-resistant sorting areas, plus intelligent maintenance alerts, it ensures stable performance, lower downtime, and efficient long-term operation.
Technical Specifications
▾
| Name | Model | Power (kW) | Voltage (V) | Air Pressure (MPa) | Air Consumption (m³/min) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| KFS Series | 6SXZ-240KF4-P1 | 6.4 | 180～240 50Hz | 0.6～0.8 | ≤6.0 | 8649×3500×3666 | 2450 |
Features
▾
🍳 AI Powered System
📸 Ultra high-speed HD Imaging System
⏏️ Maglev Ejectors®
👁️🗨️ Innovative Vision Systems
💡 Full Spectrum Lighting System
🎮 Remote control and service support
🔫 Sniper System
💻 Simplified Interface
AI Powered System
- MEYER thoroughly researches AI technology to provide the best sorting solutions.
- Our devices ar equipped with deep learning AI systems, based on the analysis and integration of data features such as color and shape.
- By comparing materials with an extensive library of models, Meyer ensures precise classification even of the smallest defects at the level od 1-2 pixels.
Pre and After-Sales Service
▾
PRE-SALE
Consulting solution service
Configuration suggestion
Layout suggestion
HELP DESK
Remote troubleshooting
Remote machine adjusting
Fault de-escalation
ON-SITE
Routine inspection
Commissioning
Troubleshooting
SPARE PARTS
Spare parts supply
Warranty service
Key parts maintenance
TRAINING
Local training
HQ training
Standard warranty
🌟 Pre-Sale Service — NICPL
Consultation on selecting the optimal sorter for your product
Support integrating with your existing production lines
Material testing available — attend and observe live at Kundli
🔧 After-Sale Service — NICPL
On-site service with quick response times across India
Warranty including free inspections and maintenance
24×7 support — call +91 70115 54903 anytime
Frequently Asked Questions
▾
What is the MEYER KFS Thinker UHD AI QUAD Belt Color Sorter specifically designed for?
The KFS Thinker QUAD is specifically engineered for cashew processing — with a focus on detecting cashew holes (wormholes), testa (skin), small disease spots, and defects in the abdomen area of cashews that are difficult to detect with standard two-sided sorters. Its 360° four-vision system and double-layer re-sorting structure make it the most accurate option for premium cashew grading and quality control.

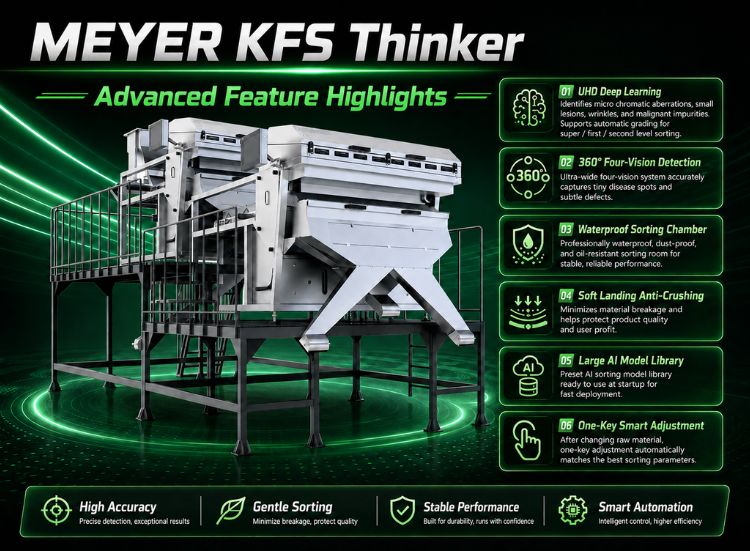

How does the 360° four-vision system improve cashew sorting accuracy?
The 360° four-vision system uses four camera units positioned at ultra-wide angles to capture images of each cashew from all sides simultaneously. This eliminates the blind spots of conventional two-sided sorters — ensuring that small spots, testa fragments, holes, and discoloration on every surface including the curved abdomen area are accurately detected. This is particularly critical for cashew hole detection where defects can appear on any face of the kernel.
What is the double-layer re-sorting structure and why does it matter?
The double-layer re-sorting structure means the cashews pass through two separate sorting stages within the same machine. The first layer performs the primary sort, removing major defects and impurities. The second layer re-inspects the output, catching anything the first pass may have missed. This two-pass process in a single machine dramatically improves final product purity compared to single-layer sorters — without requiring a second separate machine, saving space and cost.
What defects can the KFS Thinker QUAD detect and remove from cashews?
The machine detects and removes cashew holes (wormholes), testa (skin fragments), discolored pieces, physically damaged kernels, small disease spots, wrinkled pieces, mildew, scorched kernels, shell fragments, and other malignant impurities. The AI + multispectral detection system analyzes both color and shape simultaneously to detect even micro-level defects with high precision.
What does the one-key adjustment feature do?
After changing raw material — for example switching between different cashew grades or varieties — the one-key adjustment feature automatically analyzes the new product and matches the optimal sorting parameters without manual recalibration. This significantly reduces changeover time between production runs and ensures consistent sorting accuracy regardless of natural variation between batches.
What are the technical specifications of the KFS Thinker QUAD?
The KFS Thinker QUAD uses model 6SXZ-240KF4-P1 with 6.4 kW power, operating at 180–240V / 50Hz and 0.6–0.8 MPa air pressure, with air consumption of ≤6.0 m³/min. Machine dimensions are 8649×3500×3666 mm and weight is 2,450 kg. This is the large-capacity double-layer configuration designed for high-volume cashew processing.
How does the soft landing anti-crushing system protect cashew kernels?
Cashew kernels are fragile and prone to breakage during high-speed sorting and ejection. The soft landing anti-crushing system controls the landing path of sorted and ejected product, cushioning the impact and minimizing breakage. This protects whole and half cashew kernels from fracturing during processing — preserving their premium grade value and reducing downgrade losses.
What pre-sale and after-sale services does NICPL provide for the KFS Thinker QUAD?
NICPL provides complete pre-sale support including consultation for selecting the optimal sorter, configuration and layout suggestions, and live material testing at the NICPL Trial Centre in Kundli, Sonipat — where customers can attend and observe sorting of their own product. After-sale services include on-site service with quick response times across India, warranty with free inspections and maintenance, remote troubleshooting and machine adjustment, 24×7 support on +91 70115 54903, spare parts supply, and local and HQ training.
