ZDB-900-Q8 Automatic Rice Packing Machine for 5–25kg Bags — click outside to close
🔍 Click to zoom






5–25kg

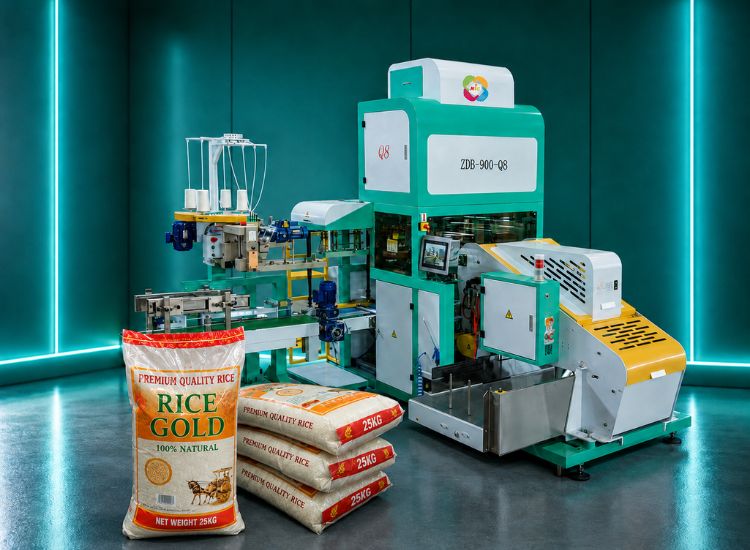

ZDB-900-Q8 Automatic Rice Packing Machine for 5–25kg Bags
The ZDB-900-Q8 is a fully automatic bagging and packing system designed to make rice and grain packaging faster and more efficient. Its double working station bag feeding system can store 100–300 bags, while bag-finished detectors alert the operator when either station needs refilling. The system also checks air pressure during bag picking, opening, clamping, and filling, and automatically removes unqualified bags without stopping the operation.
Description
▼
The ZDB-900-Q8 Fully Automatic Rice Packing Machine is a complete packaging solution designed for 5–25kg PP woven bags and a packing speed of 550–900 bags per hour. It is suitable for rice, grains, soybean, peanuts, wheat, feed, millet, corn, seeds, lentils, coffee pods, cashew nuts, salt, tea, flour, fertilizer, barley, oats, maize, rye, sunflower, rapeseed, linseed, sorghum, and other similar materials. The automatic system helps streamline bag feeding, weighing, filling, and conveying for high-volume packaging operations.
The machine features a double working station bag feeding system with storage capacity for 100–300 bags. Detectors provide an alarm when bags at either station are finished. Air pressure detection is provided during bag picking, bag opening, bag clamping, and filling, and unqualified bags can be automatically removed without stopping the machine. The high-speed weighing scale supports efficient filling, while independent systems for bag clamping and the discharge gate provide more stable bag handling. The large finger cylinder also helps keep the bag mouth smooth during filling.
For smooth conveying, the machine uses a plastic chain plate conveyor with gear-meshing transmission, helping prevent slipping and belt deviation. The conveyor and upper guide bag mechanism use mechanical linkage to maintain synchronized movement. Major machine movements use servo motors, allowing operators to adjust the machine for different packing specifications without manual adjustment. This makes the ZDB-900-Q8 a suitable choice for businesses looking for a high-speed, flexible, and fully automatic rice and grain bagging system.
Technical Specifications
▼
| Parameter | Spec / Value |
|---|---|
| Packing Range | 5–25 kg |
| Packing Speed | 550–900 Bags/Hour |

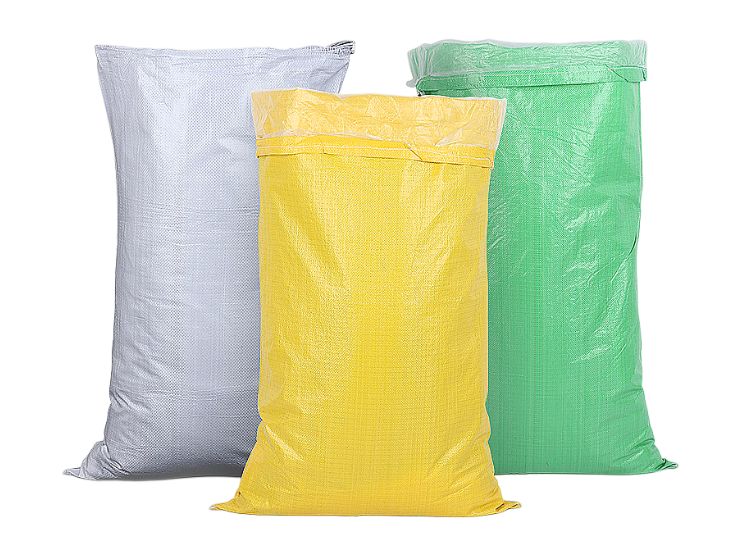

| Bag Type | PP Woven Bag |
| Bagging System | Fully Automatic |
| Working Station | Double Working Station |
| Bag Storage Capacity | 100–300 Bags |
| Application | Rice, Grain, Soybean, Peanut, Wheat, Feed, Millet, Corn, Seeds, Lentil, Coffee Pod, Cashew Nuts, Salt, Tea, Flour, Fertilizer, Barley, Oats, Maize, Rye, Sunflower, Rapeseed, Linseed, Sorghum and More |
| LWH | 3520X3257X3250mm |
Features
▼
⚙️ Double Working Station Bag Feeding System
🛡️ Automatic Air Pressure Detection
⚖️ High-Speed Weighing Scale
👌 Smooth Bag Mouth Opening
The machine uses two working bag-feeding stations for continuous operation.
Each station can store approximately 100–300 bags, reducing the need for frequent manual loading.
A detector monitors the bag supply at both working stations.
An alarm is activated when the bags at either station are finished.
This helps keep the packing process running smoothly with less interruption.
Air pressure is monitored during bag picking, opening, clamping, and filling.
The system checks whether the required pressure is available at each stage.
Unqualified bags can be automatically rejected without stopping the machine.
This helps maintain a smooth and continuous packing process.
It also supports more reliable bag handling during automatic operation.
The machine is equipped with a high-speed weighing scale for efficient product weighing.
It helps measure the required quantity before filling the bag.
High-speed weighing supports faster overall packing performance.
It is suitable for continuous high-volume packaging operations.
The system helps maintain consistent quantities in the packed bags.
A large finger cylinder is used to help open and hold the bag mouth properly.
It helps keep the bag mouth smooth during the filling process.
Proper bag opening makes product filling more convenient.
It supports better bag positioning during automatic operation.
This helps create a smoother and more consistent packing process.
Pre and After-Sales Service
▼
📞 Pre-Sales Service
Free consultation to select the right model for your product, bag size and hourly capacity
Live machine demonstration and product trial available before purchase
Detailed quotation with technical specifications and delivery timeline
Factory layout guidance for conveyor, power and air supply requirements
🛠️ After-Sales Service
On-site installation and commissioning by NICPL trained engineers
Operator training for machine operation, changeover and daily maintenance
Genuine Jialong spare parts available through NICPL — fast delivery across India
24×7 support helpline — remote troubleshooting and scheduled service visits
