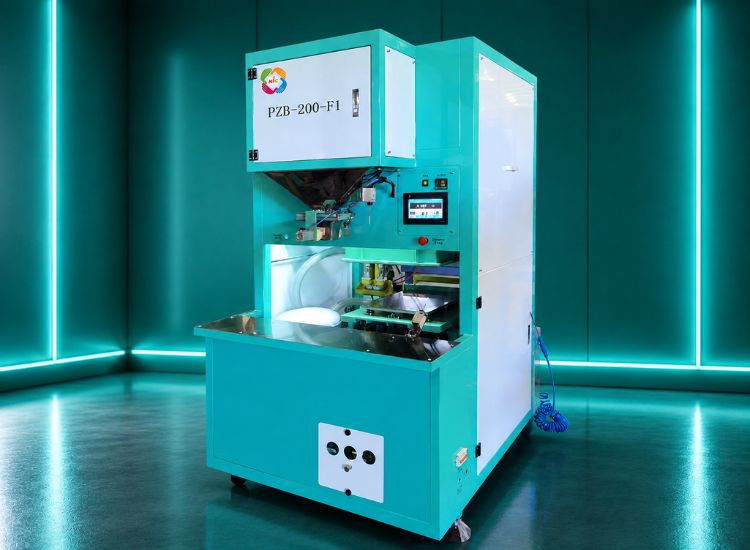

PZB-200-F1 Vacuum Packing Machine for 1–10kg Flat Packs
The PZB-200-F1 is an automatic flat-shape vacuum packing machine designed for rice, sugar, beans, corn, coarse cereals, peanuts, and other food products. Its touch-screen control system combines weighing, feeding, vacuuming, heat sealing, discharging, and conveying into one automated process, while the real-time monitoring system makes operation simple and convenient.
The machine features a special double-working-station design with a compact structure and two-side shaping system for efficient flat-shape packaging. Imported load cells, pneumatic components, and detection elements provide reliable operation, while the aluminium and stainless steel main structure offers durability. An RS232/485 interface is also reserved for external system communication.
Description
▼
The PZB-200-F1 1–10kg Vacuum Packing Machine is an automatic flat-shape vacuum packaging solution designed for the food and grain processing industry. It supports a 1–10 kg weighing range and provides a packing speed of 180–250 bags per hour. The machine is suitable for purified rice, sugar, beans, corn, grains, peanuts, coarse cereals, and other food products that require flat-shape vacuum packaging.
The machine uses a centralized touch-screen control system combined with intelligent control instruments to automatically complete weighing, feeding, vacuuming, heat sealing, discharging, and conveying. The system provides real-time tracking of the machine status through a user-friendly interface. Its specially designed double-working-station structure and two-side shaping system allow efficient packaging within a compact space.
For reliable operation, the PZB-200-F1 uses imported load cells, pneumatic components, and detection elements, along with safety and self-reduction devices. The main structure is made from aluminium and stainless steel, providing a durable and attractive machine body. The machine also has a reserved RS232/485 interface for external communication and system integration.
Technical Specifications
▼
| Parameter | PZB-200-F1 |
|---|---|
| Packing Range | 5–25 kg |
| Packing Speed | 550–900 Bags/Hour |
| Bag Type | PP Woven Bag |
| Bagging System | Fully Automatic |
| Working Station | Double Working Station |
| Bag Storage Capacity | 100–300 Bags |
| Weighing System | High-Speed Weighing Scale |
| Application | Rice, Grain, Soybean, Peanut, Wheat, Feed, Millet, Corn, Seeds, Lentil, Coffee Pod, Cashew Nuts, Salt, Tea, Flour, Fertilizer, Barley, Oats, Maize, Rye, Sunflower, Rapeseed, Linseed, Sorghum and More |
Features
▼
⚙️ Suitable for Rice and Food Products
🖥️ Centralized Touch-Screen Control
🔄 Double Working Station Design
📐 Two-Side Shaping System
Designed for purified rice, food products, and coarse cereals that require vacuum packaging.
Suitable for packaging products in the 1–10 kg range.
Can be used for rice, sugar, beans, corn, grains, peanuts, and similar food materials.
Helps provide compact and secure vacuum packaging.
Suitable for food and grain processing businesses.
The machine uses a touch-screen control system combined with intelligent control instruments.
Automatically handles weighing, feeding, vacuuming, heat sealing, discharging, and conveying.
Provides real-time tracking of the machine's operating status.
The user-friendly interface makes operation easier for operators.
Helps manage the complete packing process from one control system.
Features a specially designed double working station for efficient packaging.
The compact structure allows the machine to perform packaging operations within limited space.
Supports smooth and organized vacuum packing operations.
Helps improve machine utilization during continuous packaging.
Designed to provide efficient operation while maintaining a compact footprint.
Uses an originally designed two-side shaping system for the vacuum pack.
Helps provide a more consistent and properly shaped package.
Supports better product presentation after vacuum packaging.
Designed to work efficiently with the vacuum packing process.
Helps achieve a neat and compact finished package.
Pre and After-Sales Service
▼
Pre-Sales 📞
Free consultation to select the right model for your product, bag size and hourly capacity
Live machine demonstration and product trial available before purchase
Detailed quotation with technical specifications and delivery timeline
Factory layout guidance for conveyor, power and air supply requirements
🛠️ After-Sales Service
On-site installation and commissioning by NICPL trained engineers
Operator training for machine operation, changeover and daily maintenance
Genuine Jialong spare parts available through NICPL — fast delivery across India
24×7 support helpline — remote troubleshooting and scheduled service visits
Contact Us
