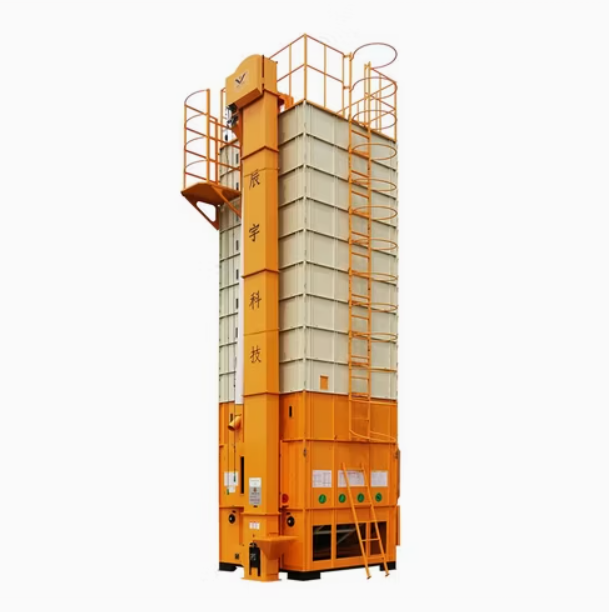

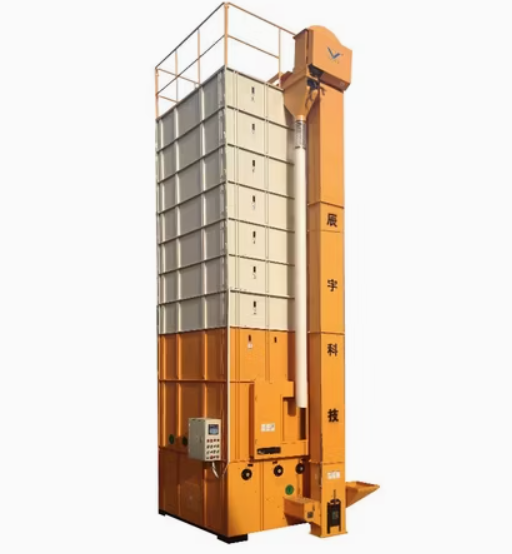

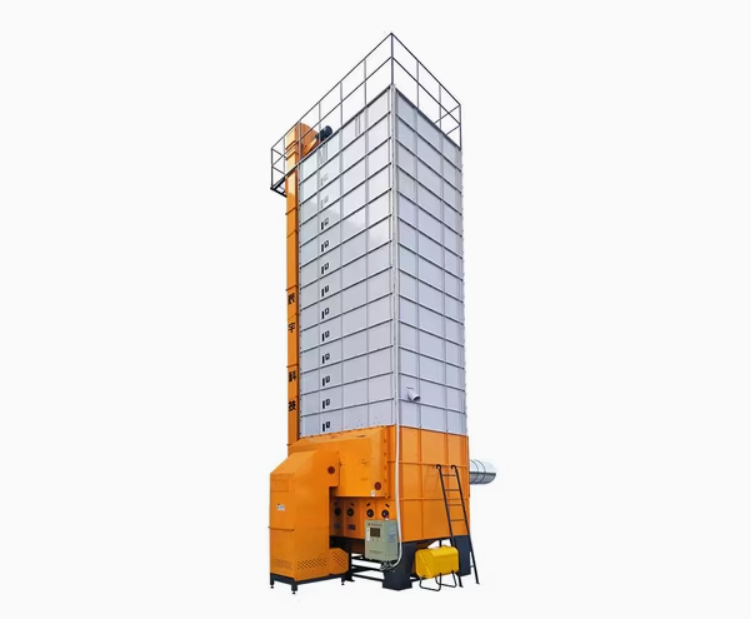

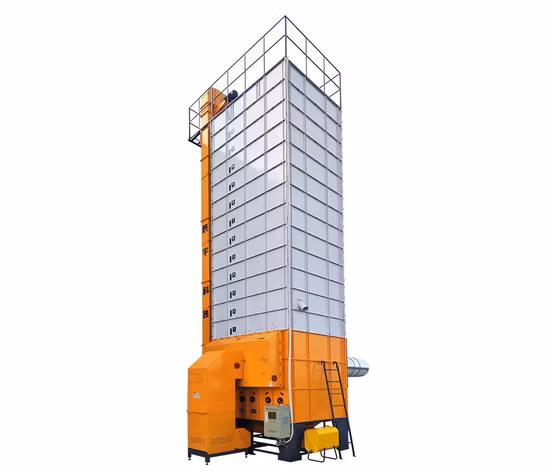

🌀 Cross Flow With Auger 4 Models 10T — 21T per Batch
Cross Flow Grain Dryer With Auger 5HCY-10H,5HCY-12H,5HCY-15H
Batch-type circulating grain dryer with auger system for paddy, wheat, maize, peanuts and oilseed. Indirect heating via husk or biomass burner. PLC microcomputer control with automatic moisture and temperature monitoring.

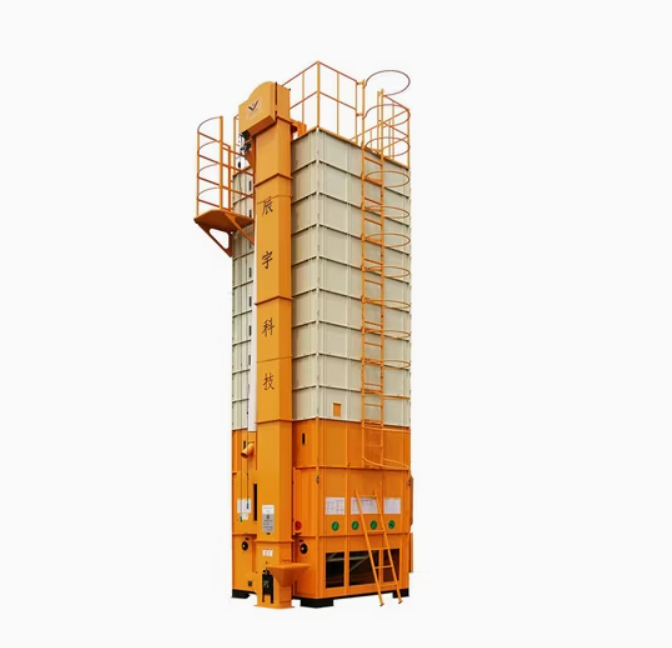

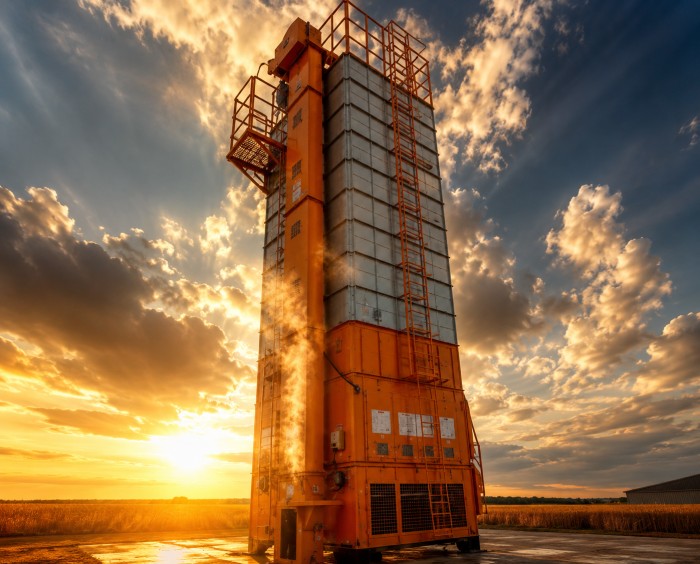

5HCY-10H
10T batch — entry-level model suited for small rice mills, farmers and cooperatives

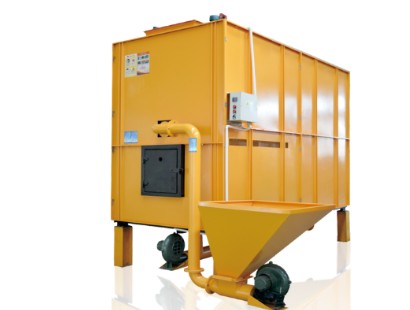

Indirect heating via biomass or husk furnace — no grain contamination, food safety protected
PLC microcomputer control — fully automated drying cycle, reduces labour to one operator
Weight 2700 KG — overall dimension 4320 × 2492 × 7970 mm
Paddy / Rice Wheat Maize / Corn Peanut Oilseed
Basic Info — 5HCY-10H
Model NO. 5H-10
Loading Capacity 10T
Overall Dimension 4320 × 2492 × 7970 mm
Weight 2700 KG
Total Motor Power 7.87 KW
Drying Rate 0.5 – 1.2 (%/h)
Broken Rate ≤ 0.5%
Voltage / Frequency Three Phase 415V / 220V / 50Hz
Drying Type Cross Flow — Indirect — Batch
HS Code 8433520000

Description

Batch-type circulating grain dryer with auger system for paddy, wheat, maize, peanuts and oilseed. Indirect heating via husk or biomass burner. PLC microcomputer control with automatic moisture and temperature monitoring.

See the Difference

❌ Before Drying
✅ After Drying
Before — corn 🌽 corn
VS
After — corn 🌽 corn
Before — rice 🌾 rice
VS
After — rice 🌾 rice
Before — wheat 🌾 wheat
VS
After — wheat 🌾 wheat
Before — peanut 🥜 peanut
VS
After — peanut 🥜 peanut
Before — sunflower seeds 🌻 sunflower seeds
VS
After — sunflower seeds 🌻 sunflower seeds
Before — mustard seeds 🌱 mustard seeds
VS
After — mustard seeds 🌱 mustard seeds
Before — Sesame Seeds 🪹 Sesame Seeds
VS
After — Sesame Seeds 🪹 Sesame Seeds
Before — Soybean 🫛 Soybean
VS
After — Soybean 🫛 Soybean
Before — Linseed 🌱 Linseed
VS
After — Linseed 🌱 Linseed
≤ 0.5% broken grain — gentle indirect drying preserves quality, weight & market value

Technical Specifications

Swipe left to see all columns
Parameter 5HCY-10H
Model NO. 5H-10
Loading Capacity 10T
Overall Dimension 4320 × 2492 × 7970 mm
Weight 2700 KG
Total Motor Power 7.87 KW
Drying Rate 0.5 – 1.2 (%/h)
Broken Rate ≤ 0.5%
Voltage / Frequency Three Phase 415V / 220V / 50Hz
Drying Type Cross Flow — Indirect — Batch
HS Code 8433520000
Electrical Brand Siemens
Drying Rate (%/h) 0.5 – 1.2
Broken Rate ≤ 0.5%
Voltage / Frequency Three Phase 415V · Single Phase 220V / 50Hz (can be customized)
Fuel Options Rice Husk · Wood · Straw · Corn Cob · Biomass · Gas · Coal · Diesel
Standard Equipment & Safety
Safety Devices Grain alarm · Thermal relay · Temperature controller · Grain temp sensor · Hot air temp sensor · Overload & leakage protection
Standard Equipment Online moisture meter · Temp detector · Dryer base · Discharging layer · Drying layer · Tempering layer · Elevator · Hot air blower · Guard railing · Ladders

Features

Product Features & Description
Product Features & Description
  • 🔧 Simple & Compact Structure — Small volume after dismantling, easy for transportation and movement across locations
  • 💧 Online Moisture Meter — Automatic moisture control system prevents over-drying and eliminates unwanted weight loss
  • 🌡️ Automatic Temperature Control — Hot air temperature and air volume adjusted automatically for top drying quality
  • 🤖 Microcomputer Control System — Highly automated operation reduces labor requirement and improves working efficiency
  • ⚡ Increased Drying Area — Expanded drying surface accelerates drying speed for faster and efficient output
  • 🔥 Multiple Heat Source Compatible — Supports Biomass, Fuel, Gas, and Coal for flexible operation

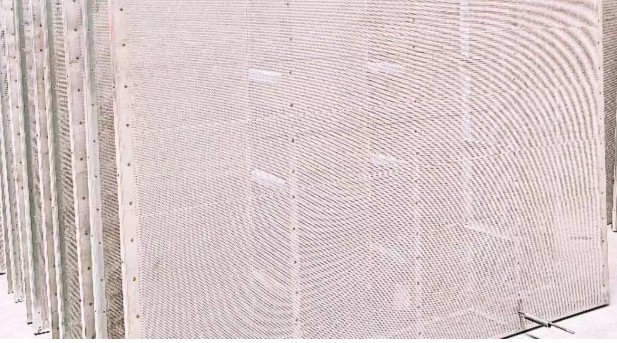

🔧 Drying Layer Mesh Plate
🔧 Drying Layer Mesh Plate
  • 🦾 High-Quality Stainless Steel Mesh Plate — Strong corrosion resistance for longer service life and better temperature transfer
  • 📐 2.5-3.0mm Mesh Size — Ensures even passage of grains for more uniform heating throughout the drying process
  • 🌡️ Better Temperature Transfer — Superior heat distribution across all drying layers for consistent drying quality
  • ⚙️ Durable & Long Lasting — Premium stainless steel material withstands heavy-duty continuous drying operations
  • 🌾 Uniform Grain Heating — Mesh design ensures every grain receives equal heat exposure for perfect drying results

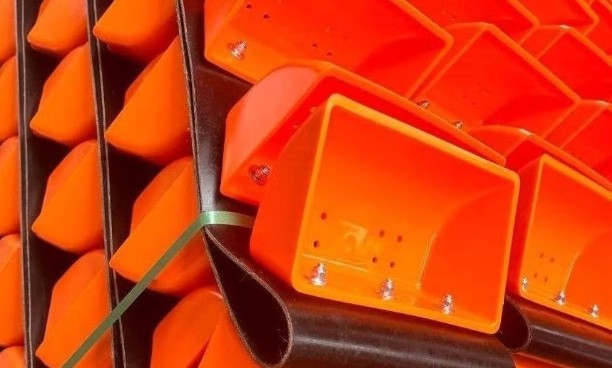

⚙️ Dustbin & Conveyor Belt
⚙️ Dustbin & Conveyor Belt
  • 🗑️ Thick PP Material Dustbin — More wear-resistant design ensures longer durability and reliable performance
  • 🔩 Thickened Conveyor Belt — Enhanced thickness improves stability and durability during continuous operation
  • 💰 Cost Saving Design — Reduces customer maintenance and replacement costs in the later stage
  • ⚙️ Heavy Duty Construction — Both dustbin and conveyor belt built for long-term heavy-duty usage
  • 🛡️ Superior Wear Resistance — Premium PP material withstands tough working conditions for extended service life

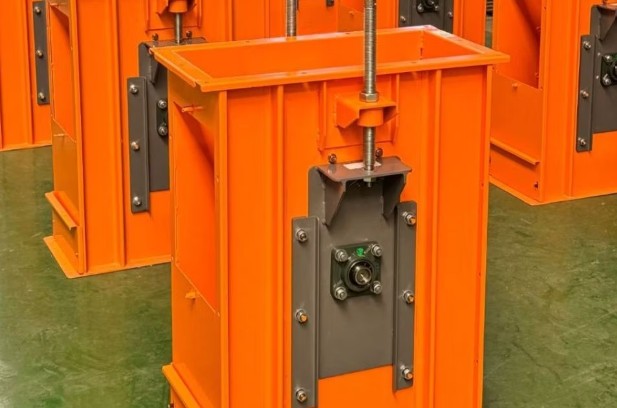

🏗️ Main Engine Chassis & Hoist
🏗️ Main Engine Chassis & Hoist
  • 🏗️ Simple Main Engine Chassis — Easy to clean design using gravity bearing calculation for hassle-free maintenance
  • 🧹 Easy Cleaning System — Gravity-based chassis design allows quick and effortless cleaning after every operation
  • 🆕 New Structure Hoist Design — Advanced hoist design guides grain smoothly and efficiently through the system
  • 🌾 80% Less Grain Damage — Innovative hoist structure reduces grain damage by up to 80% for better output quality
  • ⚙️ Heavy Duty Chassis Build — Sturdy and reliable main engine chassis built for long-term continuous operation
⚙️ Lower Winch & Discharge System
⚙️ Lower Winch & Discharge System
  • 🔗 Connecting Rod Structure Design — Lower winch adopts advanced connecting rod design for smooth and efficient grain discharge
  • 📊 98% Grain Discharge Rate — Achieves an impressive 98% discharge rate for maximum output and minimal grain wastage
  • ❌ Hanging Dragon Structure Cancelled — Eliminates traditional hanging dragon structure for simpler and more reliable operation
  • 🌾 Reduced Physical Fragmentation — Innovative design significantly reduces grain breakage and physical fragmentation during discharge
  • ⚙️ Advanced Lower Winch System — Precision engineered lower winch ensures consistent and efficient grain flow at all times

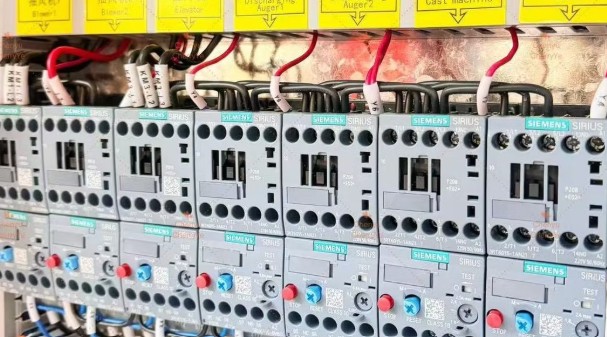

⚡ Siemens Electrical Appliances
⚡ Siemens Electrical Appliances
  • 🌍 Globally Renowned Brand — Siemens electrical appliances ensure high stability, guaranteed quality and reduced equipment failures
  • 🔒 High Reliability — Backed by Siemens global supply chain for convenient maintenance and easy replacement anywhere
  • 🛡️ Superior Quality Components — Siemens appliances deliver longer service life and higher operational accuracy
  • ⚡ Reduced Equipment Failures — World-class Siemens technology minimizes downtime and ensures uninterrupted drying operations
  • 🎯 Higher Accuracy & Precision — Siemens electrical systems provide precise control for consistent and reliable performance

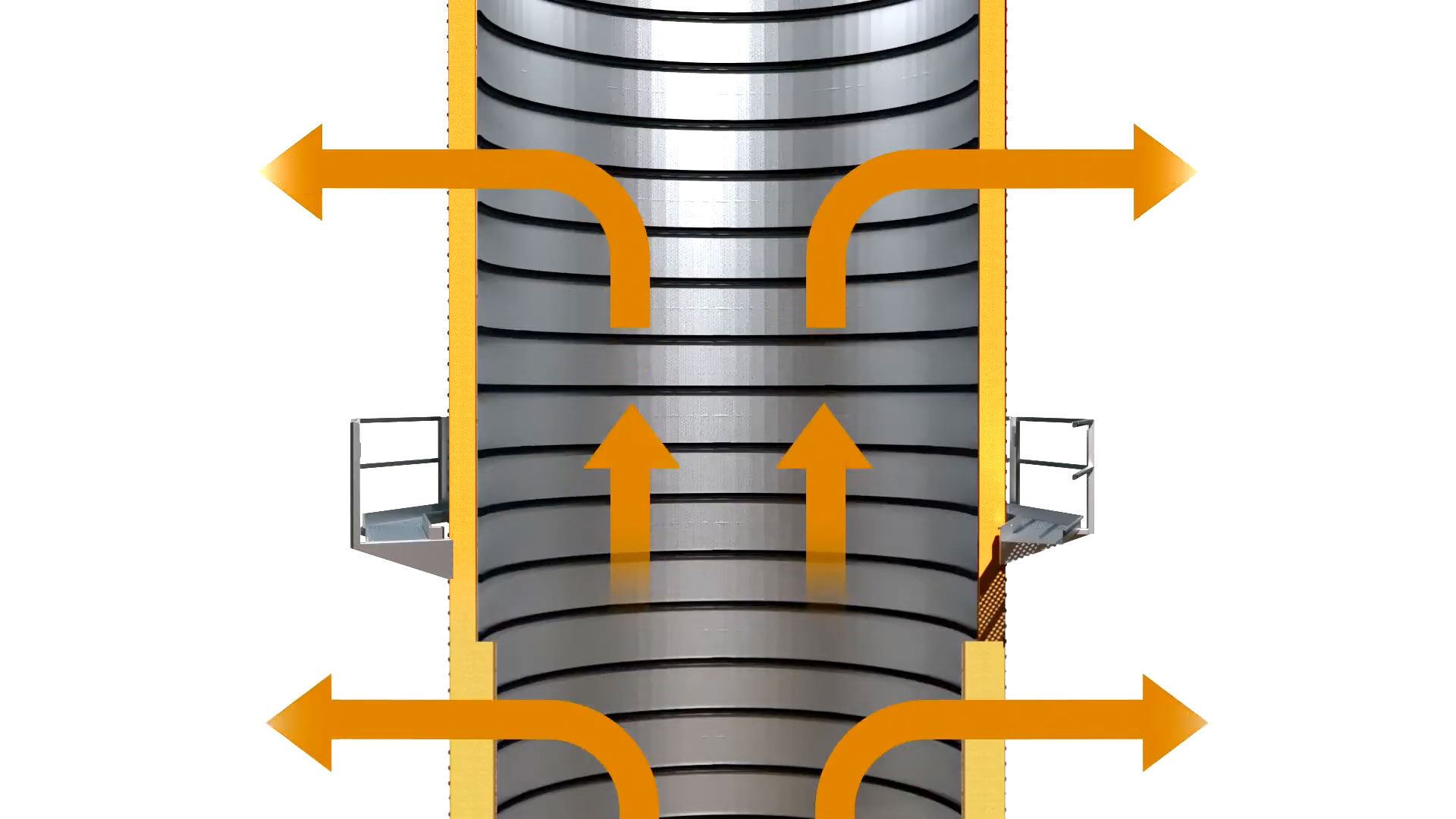

🌀 Cross Flow Airflow Design
🌀 Cross Flow Airflow Design
  • 🌀 Cross Flow Airflow Design — Heated air is forced horizontally at 90° angle across the vertical grain column
  • ⬇️ Vertical Grain Movement — Grain moves continuously downward through screens for smooth uninterrupted drying
  • 🌾 Wide Crop Compatibility — Effectively dries corn, wheat, paddy, maize and various other agricultural crops
  • 💰 Cost Effective Method — Traditional and proven design offers the most affordable grain drying solution
  • ⚡ Rapid Moisture Reduction — High airflow across grain column quickly reduces moisture content in every batch
  • 🏗️ Compact & Simple Structure — Easy to install and operate with minimal space and infrastructure requirement
  • 🔧 Continuous Flow System — Non-stop grain movement ensures consistent and efficient drying output
  • 🌡️ Uniform Heat Distribution — Horizontal hot air flow ensures every layer of grain receives adequate heat exposure

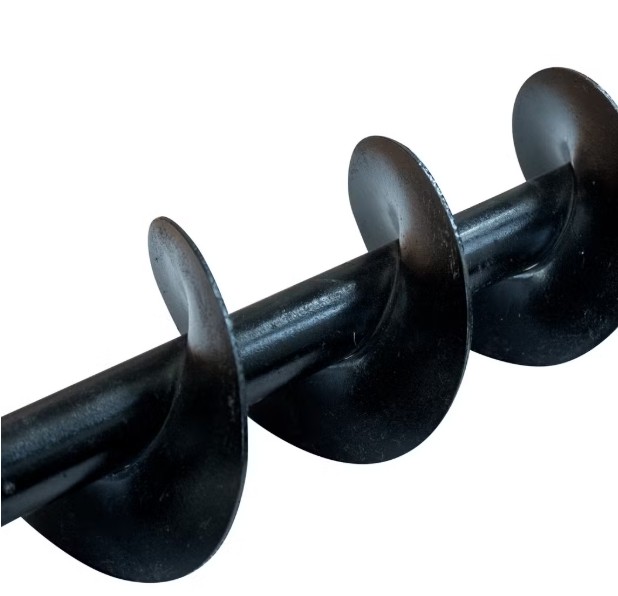

⚙️ Auger — Screw Conveyor System
⚙️ Auger — Screw Conveyor System
  • 📊 How Auger Works:
  • Grain Inlet ↓
  • ┌────────────┐
  • │ ╱╲ ╱╲ │ ← Rotating Screw
  • │ ╱ ╲╱ ╲ │ ← Spiral Flights
  • │╱ ╲ ╲ │ ← Push Grain
  • └────────────┘
  • Grain Outlet ↓
  • ⚙️ Helical Screw Design — Rotating spiral screw shaft pushes grain continuously along the auger length
  • 🌾 Controls Residence Time — Auger precisely controls how long grain stays in drying chamber for perfect moisture content.
  • ⚡ Precise Grain Movement Control — Screw speed can be adjusted to control grain flow rate and drying time.
  • 🔧 Compact & Space Saving — Auger system fits within tight spaces without requiring extra building height.

Frequently Asked Questions

+ 🌾 Why Do You Need a Grain Dryer?
🌾 Prevent Grain Mold — Dry your grains while still fresh to prevent mold and protect your entire harvest ☀️ Weather Independent Drying — Your harvest is no longer at the mercy of unpredictable weather conditions 🌡️ Low Temperature Drying — Paddy dried at low temperature keeps grains alive and maintains premium quality 💰 Increase Your Income — Low temperature dried paddy is suitable for high value small-package rice production 🛡️ Protect Your Harvest — Grain dryer ensures safe and reliable drying regardless of season or climate 📦 High Value Rice Production — Fresh dried paddy can be processed into premium small-package rice for better market returns
+ 🔄 Can One Dryer Dry Various Grains?
🌾 Multi-Grain Drying Capability — Single re-circulating dryer can dry various grains and seeds with ease 💰 Maximum Return on Investment — Use one dryer for multiple grain types to maximize your ROI significantly 🔄 Re-Circulating Technology — Advanced re-circulating system adapts perfectly to different grain and seed varieties 🌽 Versatile Crop Compatibility — Suitable for drying paddy, wheat, maize, corn, soybeans and various other seeds 📈 Higher Profitability — One machine multiple uses means lower operational costs and higher overall profitability ⚙️ Flexible Operation — Same dryer settings can be adjusted and optimized for different grain drying requirements
+ ⚡ What Power Supply Does the Grain Dryer Need?
⚡ Three Phase Power Required — Operates on Three Phase 415V or Single Phase 220V / 50Hz supply 🔌 Customizable Voltage — Power supply settings can be customized as per your site requirements 🤖 Siemens Electricals — World-class Siemens electrical components ensure safe and stable power consumption ⚙️ Low Power Consumption — Total motor power of only 7.87 KW for energy-efficient operation 🛡️ Overload Protection — Built-in overload and leakage protection for safe and uninterrupted operation
+ 🔥 What Fuel Sources Can Be Used?
🌾 Rice Husk Compatible — Use locally available rice husk as a highly economical heat source 🪵 Wood & Straw Supported — Wood, straw and corn cob are all compatible fuel options 🌿 Biomass Friendly — Supports biomass burner for eco-friendly and sustainable drying operation ⛽ Gas & Diesel Option — Can also operate on gas, coal or diesel for flexible fuel availability 💰 Reduce Fuel Costs — Use cheapest locally available fuel to minimize overall operating costs
+ 🌾 Which Grains Can This Dryer Dry?
🌾 Paddy & Rice — Ideal for drying freshly harvested paddy while preserving grain quality 🌽 Maize & Corn — Effectively dries maize and corn with minimal breakage and damage 🌾 Wheat — Uniform cross flow drying ensures perfectly dried wheat in every batch 🥜 Peanuts — Gentle indirect heating suitable for drying peanuts without quality loss 🌻 Oilseeds — Compatible with sunflower, mustard, sesame, soybean, linseed and more
+ 🛡️ What Safety Features Are Included?
🌡️ Temperature Controller — Monitors and controls hot air temperature throughout the drying cycle 🌾 Grain Alarm System — Alerts operator immediately if any grain flow issue is detected 🔒 Thermal Relay Protection — Protects motor and electrical components from overheating damage ⚡ Overload & Leakage Protection — Built-in protection prevents electrical faults and equipment damage 📊 Online Moisture Meter — Real-time moisture monitoring prevents over-drying and grain quality loss 🌡️ Dual Temp Sensors — Separate grain temperature and hot air temperature sensors for precise control
+ 🌀 What is a Cross Flow Grain Dryer?
🌀 Sideways Airflow Design — Hot air moves horizontally across the grain column for efficient drying 💰 Lower Initial Cost — Simple design makes cross flow dryers the most affordable option 🔧 Compact Installation — Smaller footprint suits locations with limited space and building height ⚙️ Auger or Non-Auger — Available with mechanical auger or gravity-based grain movement system ⚠️ Slight Moisture Variation — Drying may be slightly less uniform compared to mixed flow designs 🌾 Suitable For — Paddy, wheat, maize, corn, peanuts and oilseeds
+ 🔄 What is the Difference Between Auger and Non-Auger?
⚙️ Auger System — Screw conveyor mechanically moves grain through the dryer at controlled speed 🏗️ Limited Height Friendly — Auger models ideal where building or installation height is restricted ⚠️ Slight Grain Breakage — Mechanical auger may cause slightly more breakage in delicate grains 🔄 Non-Auger System — Grain moves purely by gravity with no mechanical conveyor required 🛡️ Gentler on Grains — Gravity flow is softer and causes less physical damage to grain kernels 🔩 Lower Maintenance — Fewer moving parts in non-auger means less maintenance and repair cost 📐 Height Requirement — Non-auger models require greater installation height for gravity flow
+ 💰 Which Grain Dryer Has the Lowest Cost?
✅ Lowest Initial Cost — Cross Flow Auger model offers the most affordable entry-level investment 🔥 Lowest Fuel Cost — Any dryer equipped with Husk Furnace delivers the cheapest operating cost 🔩 Lowest Maintenance Cost — Non-Auger models have fewer moving parts reducing long-term maintenance 📈 Best ROI Overall — Cross Flow Auger with Husk Furnace gives maximum return on investment 💎 Premium Investment — Mixed Flow Non-Auger costs more but delivers highest grain quality output 🧮 Choose Based On — Your budget, grain type, building height and required drying quality
+ 🌾 Which Dryer is Best for Rice, Wheat and Seed Grains?

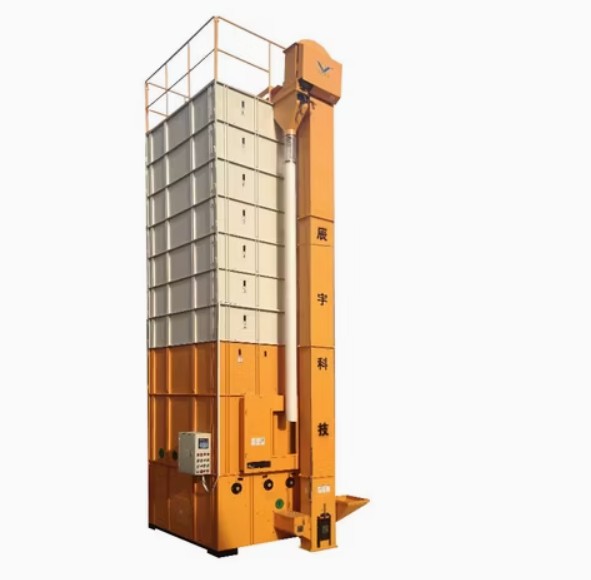

🌾 Mixed Flow Preferred — Mixed flow dryers recommended for rice, wheat and seed grain applications 💎 Uniform Moisture Critical — Seeds require consistent moisture content for germination and quality 🏆 Non-Auger Best Choice — Gravity flow causes least damage preserving seed viability and grain value 🌀 Cross Flow Also Suitable — Cross flow works well for commercial paddy, wheat and maize drying 🌡️ Low Temperature Key — Low temperature drying keeps paddy alive for premium small-package rice ✅ NICPL Recommendation — Contact our team to choose the right dryer for your specific grain and needs
+ 🏗️ How Do I Choose the Right Grain Dryer for My Setup?
📐 Check Building Height — Limited height choose Auger model, sufficient height choose Non-Auger 💰 Set Your Budget — Cross Flow Auger lowest cost, Mixed Flow Non-Auger highest performance 🌾 Know Your Grain — Delicate seeds and premium rice benefit most from Mixed Flow designs 🔥 Choose Your Fuel — Rice mill with husk available, use Husk Furnace for lowest fuel cost 📦 Match Your Capacity — Choose from 10T, 12T, 15T or 21T batch models based on daily volume 📞 Get Expert Advice — Contact +91 70115 54903 NICPL team for free consultation and personalized recommendation
+ 📦 What Are the Packing & Shipping Terms?
📦 Secure Wooden Case Packing — NICPL ensures machines are packed unassembled in wooden case with reinforcing rib and vane for safe transportation 🚢 Ex-Nava Sheva Pricing — All NICPL grain dryer prices are Ex-Nava Sheva standard factory type 🇮🇳 India Market Confirmed — NICPL prices confirmed for India market, other markets need separate reconfirmation 🚛 GST & Freight Extra — GST and freight from port to your site charged extra at actual cost ⏱️ Fast Delivery Timeline — NICPL delivers within 8 to 10 weeks from date of order with advance payment 📅 30 Day Lead Time — NICPL ensures machine is ready within 30 days from order confirmation
+ 💳 What Are the Payment Terms & MOQ?
💳 30% Down Payment — NICPL requires T/T 30% down payment at time of order confirmation 💳 70% Before Dispatch — Remaining T/T 70% to be paid before machine is dispatched from factory 🛒 MOQ Just 1 Set — NICPL minimum order quantity is 1 set making it accessible for every buyer 📅 30 Day Lead Time — NICPL prepares your machine within 30 days from order and payment confirmation 🛡️ 2 Year Warranty — NICPL provides full 2 year warranty from the date of Bill of Lading
+ 🏗️ What Are NICPL Installation & Training Terms?
🏗️ Professional Installation — NICPL installation team arrives within 3 to 4 weeks after shed and flooring is ready 👨‍🔧 3 Person NICPL Team — Experienced NICPL technicians handle complete installation and commissioning at your site 🍽️ Accommodation by Buyer — Food and accommodation for 3 NICPL technicians to be arranged by the buyer 🌙 Daytime Work Only — NICPL technicians operate only during daytime hours for safety and quality assurance 🎓 Free Training Included — NICPL provides complete operator training and commissioning as part of every purchase ✅ Full Handover Support — NICPL ensures machine is 100% operational before final handover to customer 📞 Lifetime After Sales Support — NICPL support team available via phone and WhatsApp even after installation
+ 🏆 Why Choose NICPL for Your Grain Dryer?
🏆 20 Years of Experience — NICPL has 20 years of trusted industry experience across India 🌍 1000+ Installations — Over 1000 successful installations completed across India by NICPL team ✅ Authorized Dealer — NICPL is authorized dealer of world class agricultural and industrial equipment 🎓 Expert Technical Team — Highly trained NICPL technicians provide installation commissioning and training 📞 Dedicated After Sales — NICPL support team available via phone and WhatsApp for quick resolution 🛡️ 2 Year Warranty — Every NICPL grain dryer comes with 2 year warranty for complete peace of mind 🌾 Pan India Service — NICPL service network covers all major states across India for fast support 💰 Best Value Investment — NICPL offers best in class grain dryers at most competitive prices in India
