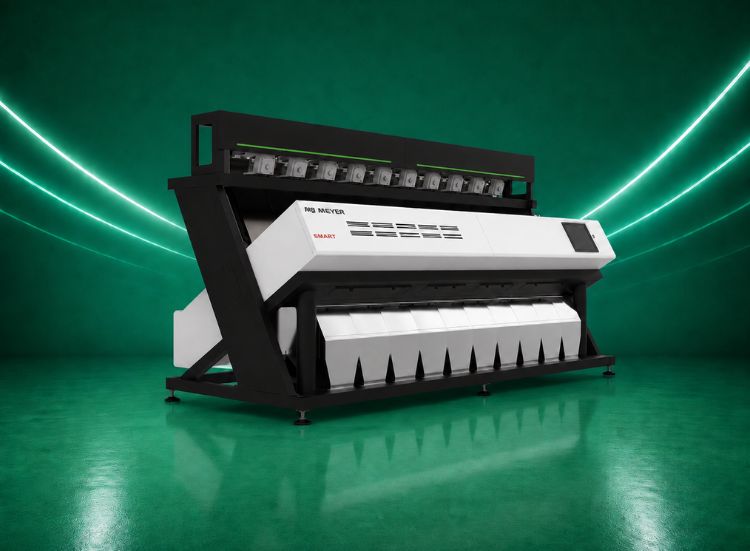

MEYER SMART Color Sorter for Multi Commodity
The Meyer SMART Color Sorter Machine is designed to provide exclusive color sorting solutions for different raw materials, especially for rice sorting applications. It delivers a high purity rate with low material loss, helping processors achieve cleaner and more consistent output. Equipped with target positioning technology, the machine meets the common sorting needs of rice processing by accurately identifying and separating unwanted grains and impurities. This machine offers outstanding output, with each chute capable of handling less than 2.5 TPH. It supports advanced shape sorting for separating long and round grains, as well as large broken, medium broken, and small broken grains. With flexible chute settings, it can perform tertiary sorting, fourth sorting, fifth sorting, and sixth sorting as per processing requirements. Its standardized and modularized design makes the machine highly reliable, smarter, and easier to maintain. The Spectral Confocal 2.0 system automatically adjusts sorting accuracy for better and more stable sorting performance.
The Meyer SMART Color Sorter Machine is designed to provide exclusive color sorting solutions for different raw materials, especially for rice sorting applications. It delivers a high purity rate with low material loss, helping processors achieve cleaner and more consistent output. Equipped with target positioning technology, the machine meets the common sorting needs of rice processing by accurately identifying and separating unwanted grains and impurities. This machine offers outstanding output, with each chute capable of handling less than 2.5 TPH. It supports advanced shape sorting for separating long and round grains, as well as large broken, medium broken, and small broken grains. With flexible chute settings, it can perform tertiary sorting, fourth sorting, fifth sorting, and sixth sorting as per processing requirements. Its standardized and modularized design makes the machine highly reliable, smarter, and easier to maintain. The Spectral Confocal 2.0 system automatically adjusts sorting accuracy for better and more stable sorting performance.
| Name | Model | Power (kW) | Voltage (V) | Air Pressure (MPa) | Air Consumption (m³/min) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| Smart | 6SXZ-300SMART | 2.7 | 180~240 (50Hz ) | 0.6~0.8 | <2.5 | 2533×1564×2020 | 1180 |
| 6SXZ-360SMART | 2.7 | 180~240 (50Hz ) | 0.6~0.8 | <3.0 | 2533×1564×2020 | 1380 | |
| 6SXZ-420SMART | 3.4 | 180~240 (50Hz ) | 0.6~0.8 | <3.5 | 2991×1564×2020 | 1530 | |

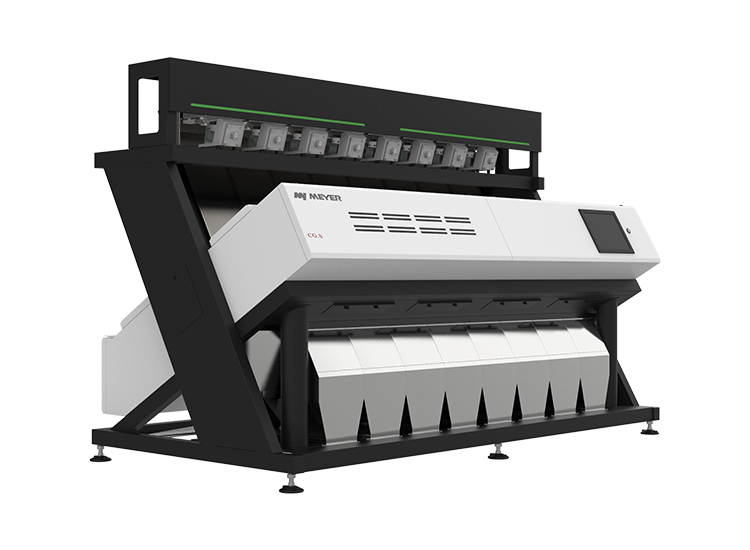

| 6SXZ-480SMART | 3.4 | 180~240 (50Hz ) | 0.6~0.8 | <4.0 | 2991×1564×2020 | 1730 | |

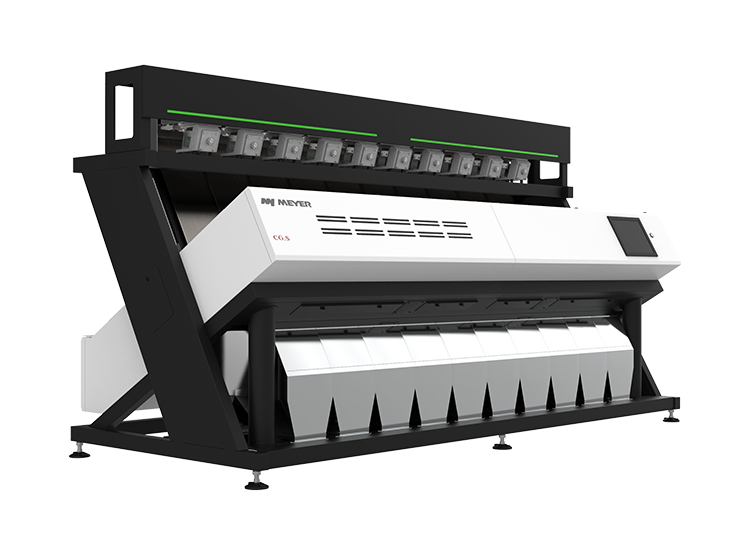

| 6SXZ-600SMART | 4.0 | 180~240 (50Hz ) | 0.6~0.8 | <5.0 | 3583×1564×2020 | 2070 |
- MEYER machines are equipped with high-resolution cameras, enabling the identification of material characteristics based on multiple aspects such as color, shape, density, and type of material.
- The minimum recognition range can reach as small as 0.0004 mm².
- MEYER sorters feature a multispectral identification system, including visible light, infrared light, UV light, and X-RAY technology.
- By utilizing differences in material properties, the cameras in MEYER machines allow for the precise removal of defects and foreign objects.
