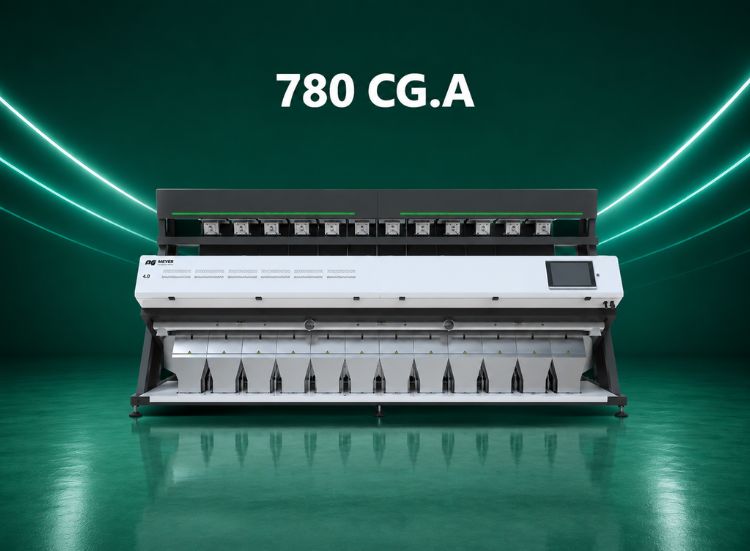

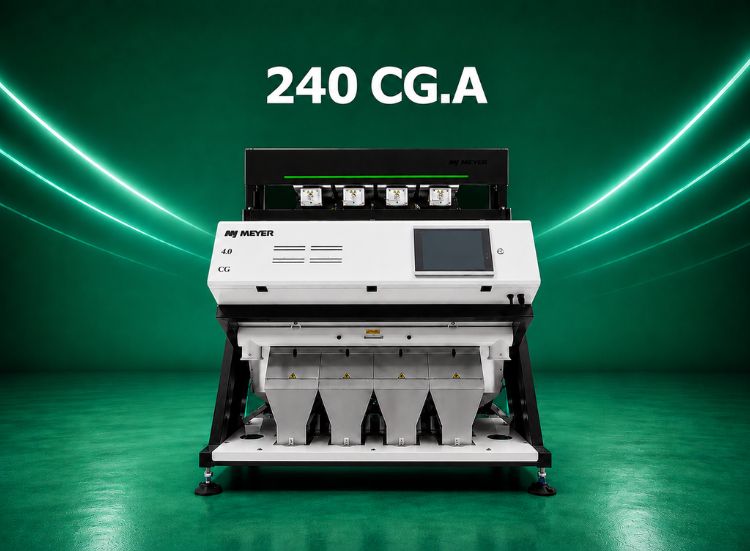

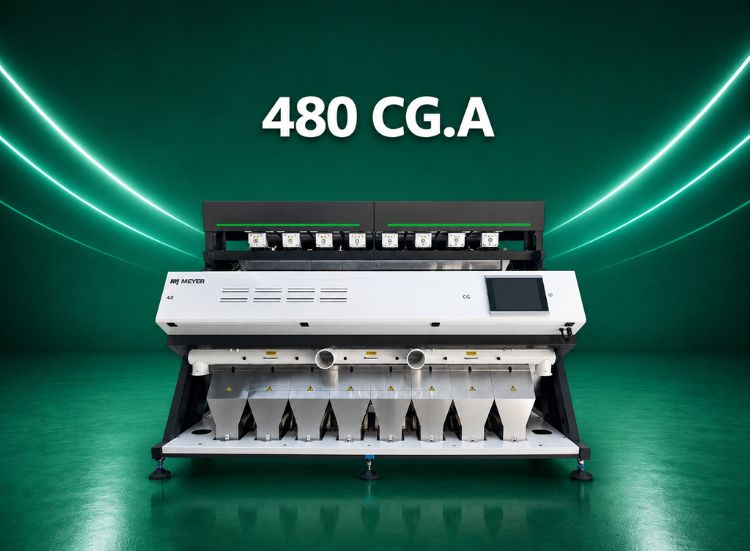

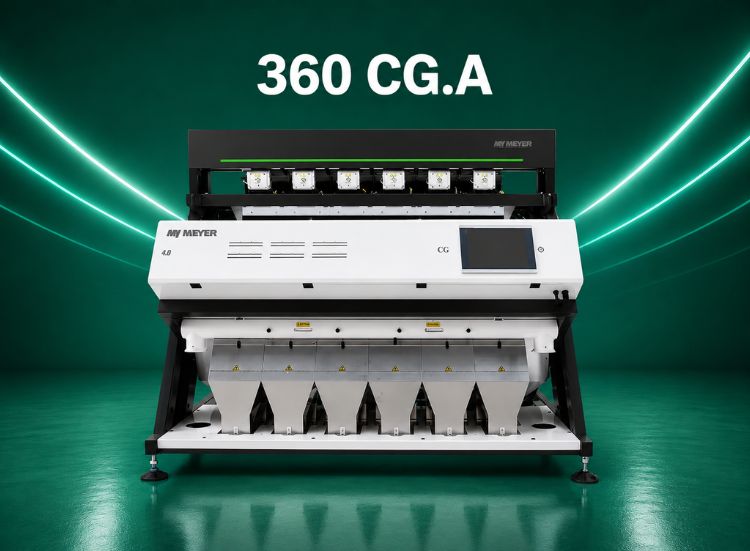

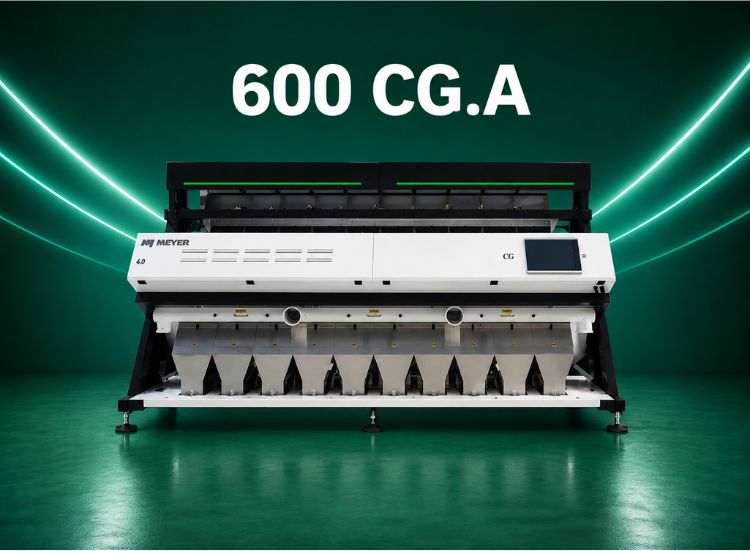

MEYER CG.4.0 AI Color Sorter for Peanuts, Rajma, Cashew & Large Commodities — AI Deep Learning & Shape Grading
The MEYER CG.A AI Color Sorter for Peanuts, Rajma, Cashew & Big Commodities is a versatile sorting machine designed for grains, legumes, nuts, seeds, and large-size food commodities. It uses AI Deep Learning Technology and an advanced detection system to identify and remove moldy, discolored, insect-damaged, broken grains, and foreign materials that are difficult to detect through traditional sorting methods. The machine is equipped with a high-speed Maglev Ejector that supports up to 1,200 ejections per second, ensuring fast and accurate rejection with minimum material loss. It also supports classification based on length, size, and shape, making it suitable for different processing requirements. With real-time parameter adjustment, flexible configuration options, and an intuitive user interface, the CG.A sorter delivers stable performance, easy operation, and high-precision sorting for modern food processing plants.
Description
▾
The MEYER CG.A AI Color Sorter for Peanuts, Rajma, Cashew & Big Commodities is a versatile sorting machine designed for grains, legumes, nuts, seeds, and large-size food commodities. It uses AI Deep Learning Technology and an advanced detection system to identify and remove moldy, discolored, insect-damaged, broken grains, and foreign materials that are difficult to detect through traditional sorting methods. The machine is equipped with a high-speed Maglev Ejector that supports up to 1,200 ejections per second, ensuring fast and accurate rejection with minimum material loss. It also supports classification based on length, size, and shape, making it suitable for different processing requirements. With real-time parameter adjustment, flexible configuration options, and an intuitive user interface, the CG.A sorter delivers stable performance, easy operation, and high-precision sorting for modern food processing plants.
What materials is it suitable for?
▾
Rice
pulse
→
INPUT
✓
ACCEPT
✕
REJECT
Technical Specifications
▾
| Name | Model | Power (kW) | Voltage (V) | Air Pressure (MPa) | Air Consumption (m³/min) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| CG 4.0 AI | 6SXZ-120CG2 | 1.3 | 180～240 50Hz | 0.6～0.8 | 2.5 | 1215*1565*2033 | 750 |

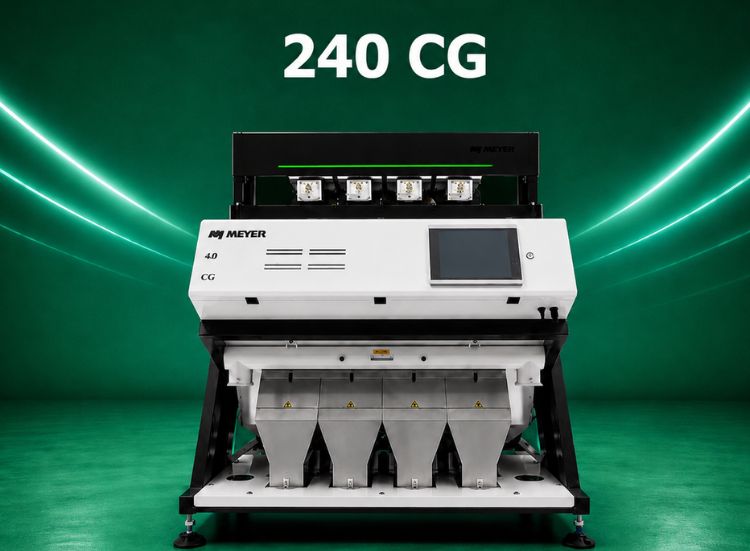

| 6SXZ-240CG2 | 2.0 | 180～240 50Hz | 0.6～0.8 | 4.0 | 1891*1565*2020 | 1120 | |

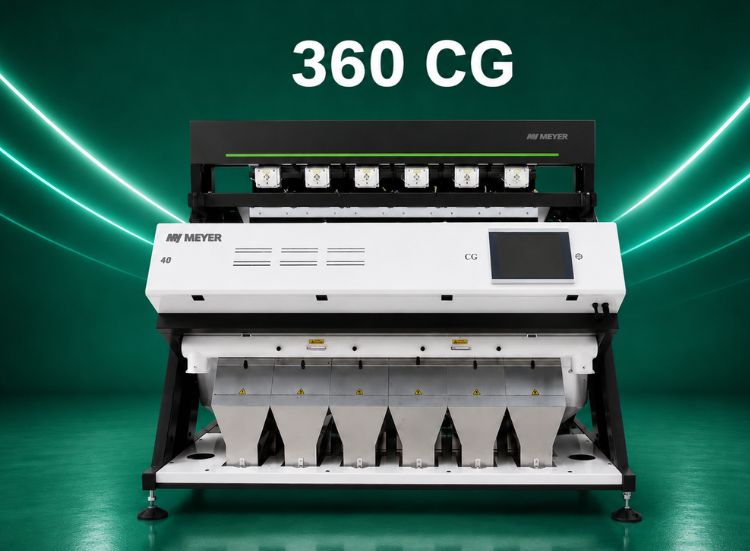

| 6SXZ-360CG2 | 2.7 | 180～240 50Hz | 0.6～0.8 | 5.5 | 2533*1564*2020 | 1400 | |

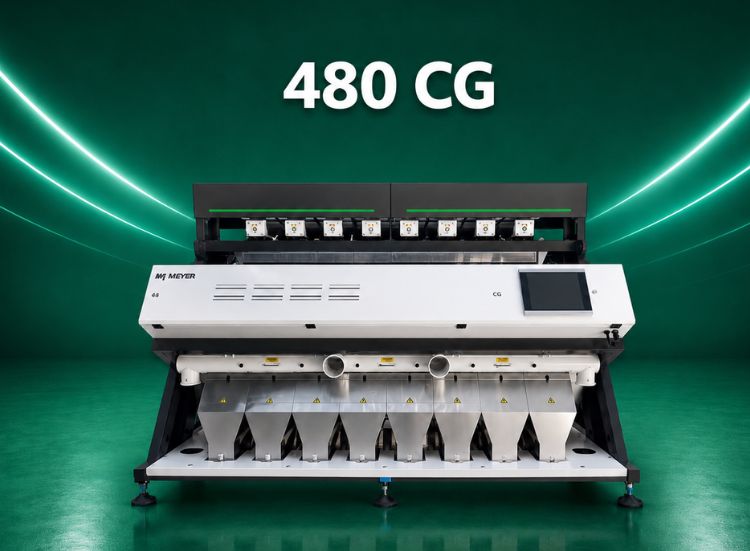

| 6SXZ-480CG2 | 3.4 | 180～240 50Hz | 0.6～0.8 | 6.5 | 2991*1564*2020 | 1750 | |

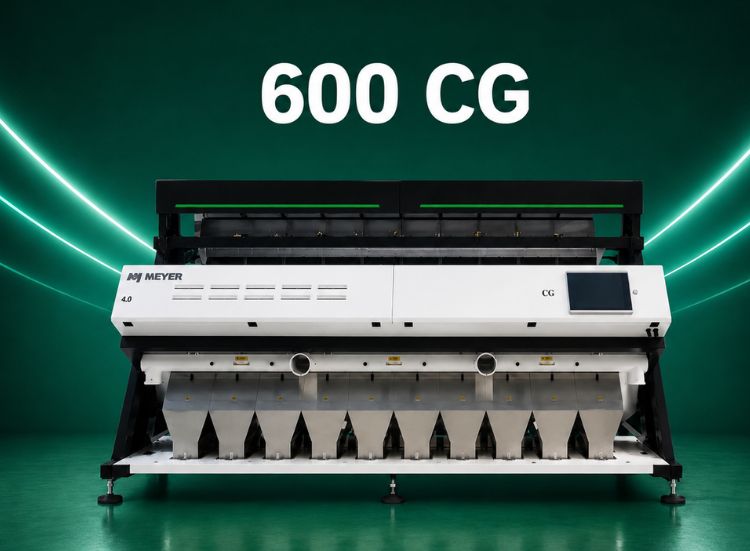

| 6SXZ-600CG2 | 4.0 | 180～240 50Hz | 0.6～0.8 | 8.0 | 3583*1564*2020 | 2090 | |

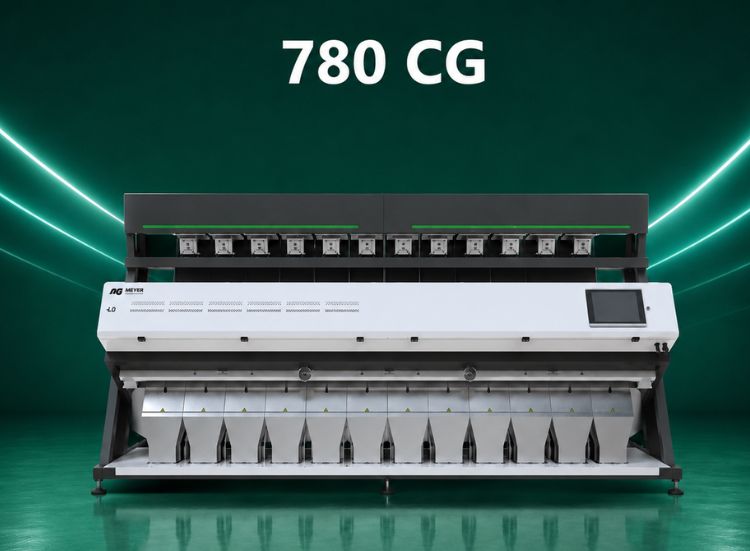

| 6SXZ-780CG2 | 5.0 | 180～240 50Hz | 0.6～0.8 | 10.0 | 4445*1620*2020 | 2800 |
Features
▾
🍳 AI Powered System
⚗️ High Computing UHD AI Chip
⛓️💥 Maglev Ejectors®
📸 Ultra high-speed HD Imaging System
⏏️ UHD vs Normal Imaging
👁️🗨️ Innovative Vision Systems
🔦 Full Spectrum Lighting System
🎮 Remote control and service support
🔫 Sniper System
💻 Simplified Interface
AI Powered System
- MEYER thoroughly researches AI technology to provide the best sorting solutions.
- Our devices ar equipped with deep learning AI systems, based on the analysis and integration of data features such as color and shape.
- By comparing materials with an extensive library of models, Meyer ensures precise classification even of the smallest defects at the level od 1-2 pixels.
Pre and After-Sales Service
▾
PRE-SALE
Consulting solution service
Configuration suggestion
Layout suggestion
HELP DESK
Remote troubleshooting
Remote machine adjusting
Fault de-escalation
ON-SITE
Routine inspection
Commissioning
Troubleshooting
SPARE PARTS
Spare parts supply
Warranty service
Key parts maintenance
TRAINING
Local training
HQ training
Standard warranty
🌟 Pre-Sale Service — NICPL
Consultation on selecting the optimal sorter for your product
Support integrating with your existing production lines
Material testing available — attend and observe live at Kundli
🔧 After-Sale Service — NICPL
On-site service with quick response times across India
Warranty including free inspections and maintenance
24×7 support — call +91 70115 54903 anytime
Frequently Asked Questions
▾
What is the MEYER CG.4.0 AI and what large commodities is it designed for?
The CG.4.0 AI is a high-capacity chute color sorter designed for large-size food commodities including peanuts (groundnuts), rajma (kidney beans), cashew kernels, rice, chickpea, soybeans, and other large legumes and seeds. It removes defects and contaminants while also classifying product by length, size, and shape making it suitable for processors who need both quality sorting and size grading in one machine.
What defects and contaminants can the CG.4.0 AI detect and remove?
It detects and removes mouldy grains, discolored particles, insect-damaged pieces, broken grains, and foreign materials including stones, plastic, and glass. The AI Deep Learning system identifies defects at 1–2 pixel level — catching contaminants that are extremely difficult to detect through traditional optical sorting methods. The High Computing UHD AI Chip powers real-time classification at pixel level for consistent high-accuracy results.
What is the shape and size classification capability of the CG.4.0 AI?
The CG.4.0 AI classifies product based on length, size, and shape in a single pass. For peanuts this means separating different size grades and broken from whole kernels. For rajma it separates broken, cracked, and whole beans. For cashew it grades different quality categories. This built-in classification replaces separate manual size grading saving time, labour cost, and an additional processing step.
What is the High Computing UHD AI Chip?
The High Computing UHD AI Chip is a dedicated proprietary AI processing chip built into the CG.4.0 AI machine. It powers real-time Deep Learning classification at pixel level comparing each particle passing through the sorter against an extensive model library of defect and quality classifications. This dedicated chip enables the high-speed processing needed for simultaneous color, shape, and size analysis at 1,200 ejections per second without lag or accuracy loss.
What models are available and what are their specifications?
Six models are available: 120CG2 (1.3 kW, 2.5 m³/min, 1215×1565×2033 mm, 750 kg), 240CG2 (2.0 kW, 4.0 m³/min, 1891×1565×2020 mm, 1,120 kg), 360CG2 (2.7 kW, 5.5 m³/min, 2533×1564×2020 mm, 1,400 kg), 480CG2 (3.4 kW, 6.5 m³/min, 2991×1564×2020 mm, 1,750 kg), 600CG2 (4.0 kW, 8.0 m³/min, 3583×1564×2020 mm, 2,090 kg), and 780CG2 (5.0 kW, 10.0 m³/min, 4445×1620×2020 mm, 2,800 kg). All operate at 180–240V / 50Hz and 0.6–0.8 MPa.
How does the CG.4.0 AI handle large-size commodities better than standard sorters?
Standard color sorters are optimised for small grains like rice and sesame. Large commodities like peanuts, rajma, and cashew kernels require wider chutes, higher ejector force, and adjusted imaging parameters to handle their size, shape variation, and weight accurately. The CG.4.0 AI is specifically engineered for these large commodity dimensions with chute configurations, ejector specifications, and AI models calibrated for large product handling.
What is the air consumption requirement and what compressor is needed?
Air consumption ranges from 2.5 m³/min for the 120CG2 up to 10.0 m³/min for the 780CG2 at 0.6–0.8 MPa. Buyers should verify their existing compressor capacity before purchase and select the right model based on available air supply. NICPL can advise on the appropriate compressor pairing for each model — KAESER compressors are also available through NICPL for a complete air supply solution.
What support does NICPL provide for the CG.4.0 AI in India?
NICPL provides pre-sale consultation, production line integration support, and live material testing at the Trial Centre in Kundli, Sonipat — where customers can bring peanuts, rajma, cashew, or other commodities and observe live sorting before purchasing. After-sale support includes on-site commissioning, warranty with free inspections and maintenance, remote troubleshooting and machine adjustment, spare parts supply, local and HQ operator training, and 24×7 support on +91 70115 54903.
Customer Reviews (13)
▾
Nasreen Bano Sheikh Company
Sheikh Dry Bean & Legume Exports Srinagar
✓ Verified Buyer
★★★★★
We export premium rajma to Middle East buyers and quality standards for colour consistency and broken bean percentage are extremely strict. The CG.4.0 AI delivers the most consistent rajma grading we have ever achieved broken, cracked, discolored, and insect-damaged beans are removed precisely and the whole bean grade output is clean and uniform. Our Middle East buyers have commented positively on the quality improvement. NICPL's team at Kundli demonstrated the machine on our actual rajma sample before we committed a very professional approach.
01 Jun 2026
Anitha Subramaniam
Subramaniam Rice & Legume Processors Madurai
✓ Verified Buyer
★★★☆☆
The CG.4.0 AI sorts rice and chickpea adequately and the AI defect detection is noticeably better than our previous standard optical sorter. However for our chickpea variety — which has a wide natural colour range from very light to deep brown — the AI calibration took nearly four weeks to stabilize before achieving consistent grading accuracy. During this period our output quality was inconsistent. NICPL's support team was patient and helpful throughout. Good machine once fully calibrated but buyers processing commodities with high natural colour variation should plan for a longer initial calibration period.
26 May 2026
Suresh Babu Reddy
Reddy Agro Peanut Industries Kurnool
✓ Verified Buyer
★★★★★
Kurnool is one of India's largest groundnut trading centres and competition on quality is intense. The CG.4.0 AI has given us a clear quality advantage over competitors still using older generation sorters. The UHD AI chip detects shriveled, fungal-risk, and discolored peanuts at a level that manual sorting teams simply cannot achieve consistently at our production speed. We now supply three size grades from one production line large, medium, and small which allows us to meet diverse buyer specifications without separate processing runs.
